1x19 Galvanized Wire Rope


Availability:

Quantity:



Inquire Add to Basket

Galvanization is a process where a metal is coated in zinc over iron or steel to prevent it from rusting and corrosion. This helps to extend the life of the metal, particularly if it is exposed to weather elements or water. Galvanized metal is often used in steel structures, cables, and wire ropes to provide additional durability.

Product Description

Any types of galvanized wire rope are more durable and rust-resistant compared to non-galvanized wire ropes (also known as bright) while being less expensive than stainless steel. This makes it a great option for many applications and budgets. But there are some things that you need to know if you are in search of galvanized wire rope for sale.

There are two ways that wire ropes can be galvanized: hot dip and electro galvanization.

Part No.	Diameter (mm)	Min Breaking Load (KN)	Weight (kg/100m)
Part No.	Diameter (mm)	Min Breaking Load (KN)	Weight (kg/100m)
RS-G-119-0125	1.25	1.6	0.50
RS-G-119-0150	1.50	2.4	0.80
RS-G-119-0200	2.00	4.4	1.50
RS-G-119-0250	2.50	5.8	2.40
RS-G-119-0300	3.00	9.5	3.50
RS-G-119-0600	6.00	36	17.80
RS-G-119-0800	8.00	56	50.40
RS-G-119-1000	10.00	88	72.60
RS-G-119-1200	12.00	126	98.80
RS-G-119-1400	14.00	172	129.00
RS-G-119-1600	16.00	210	163.00
RS-G-119-1800	18.00	285	212.00

Min Order Quantity: 1000 meters

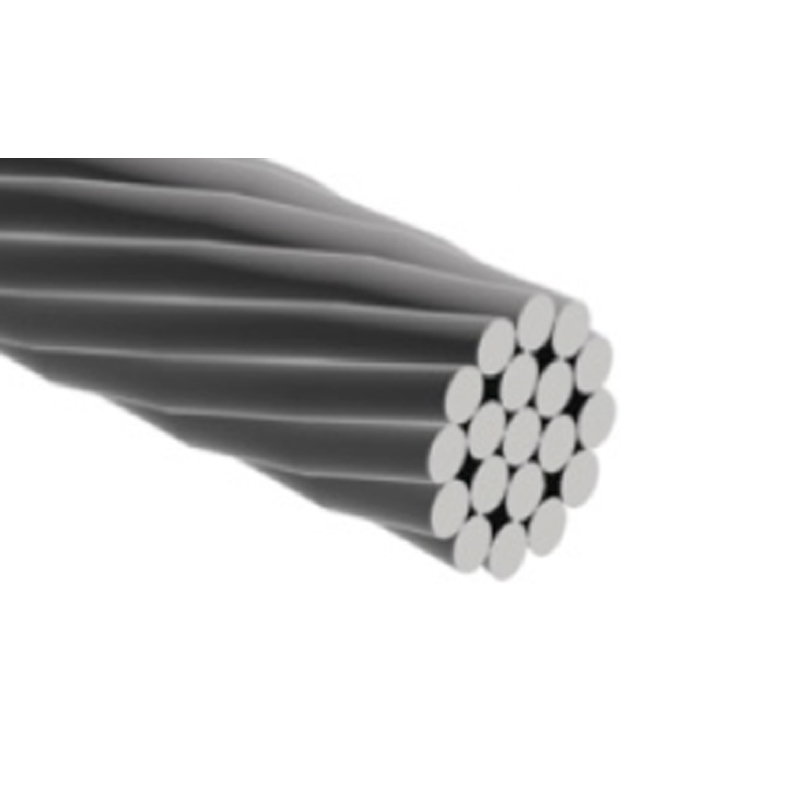

1x19 galvanized wire rope
