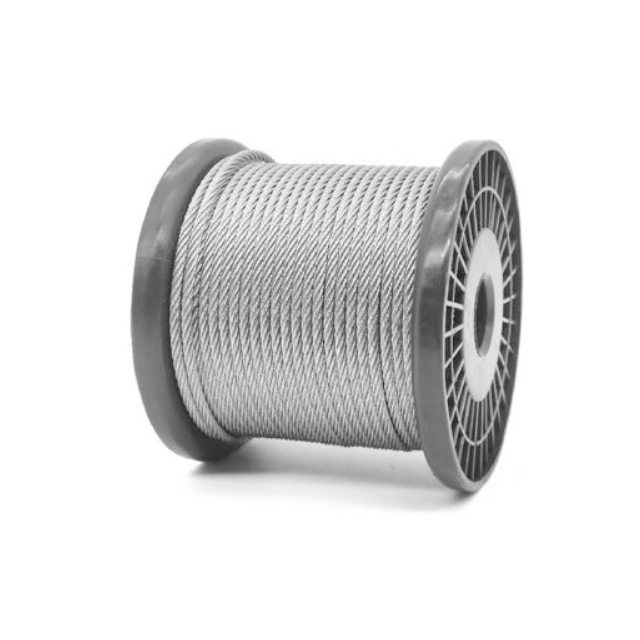

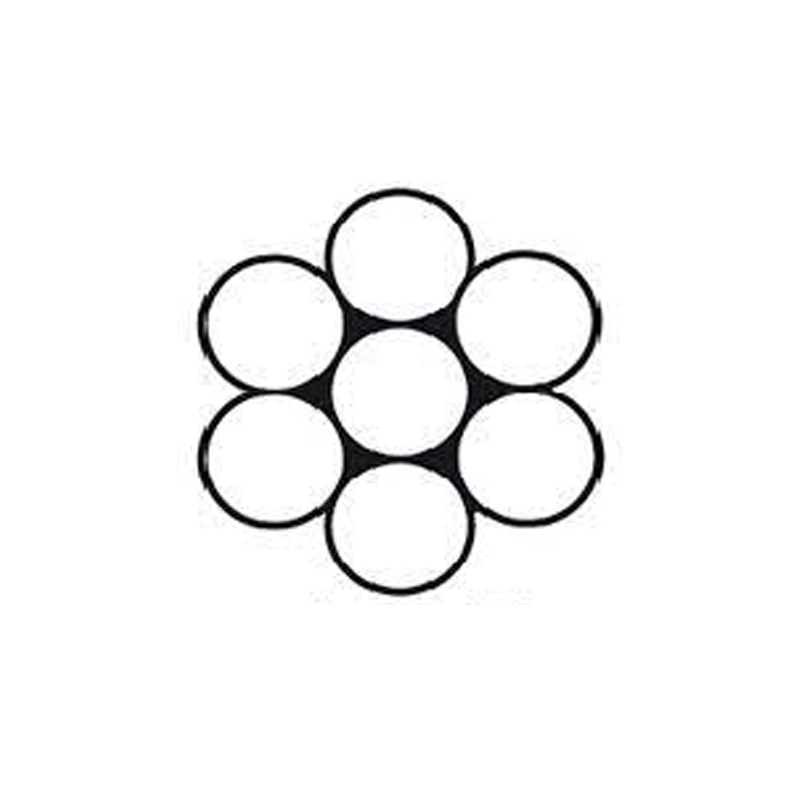

1x7 Control Cable


Availability:

Quantity:



Inquire Add to Basket

It has wide range of applation inside the vehicle such as break / gear /window / rear mirror and gas pedal... It can also be applied to the control system on machinery and electronic device.

Product Description

Part No.	Diameter (mm)	Min Breaking Load (kg)	Weight (g/m)
Part No.	Diameter (mm)	Min Breaking Load (kg)	Weight (g/m)
RS-C-01070030	0.30	10	0.05
RS-C-01070040	0.40	17	0.08
RS-C-01070050	0.50	27	0.13
RS-C-01070060	0.60	39	0.18
RS-C-01070080	0.80	68	0.32
RS-C-01070100	1.00	105	0.50
RS-C-01070120	1.20	150	0.74
RS-C-01070140	1.40	205	1.01
RS-C-01070150	1.50	230	1.15
RS-C-01070160	1.60	260	1.42
RS-C-01070180	1.80	330	1.63
RS-C-01070200	2.00	410	2.05

Min Order Quantity: 1000 meters

1x7 Control Cable
