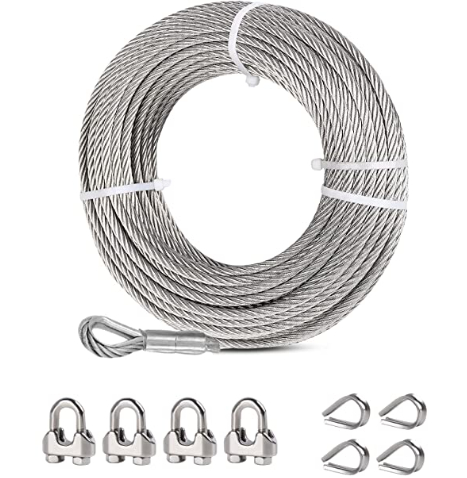

7x7 Aircraft cable


Availability:

Quantity:



Inquire Add to Basket

Aircraft cable is our specialty. Distinguished from wire rope by the type of core used and originally designed for use in the aircraft industry and military applications, the versatility of our aircraft cables has led to their use in a wide range of commercial industrial applications.
Our aircraft cable made of strand core and it is available in a range of diameters, from 1/32” to 3/4”, with specialty callouts available upon request.

Product Description

Wire rope constructed from 304 stainless steel provide excellent rust resistance and withstand corrosion from most oxidizing acids. SwageRight™ creates quality 304 stainless steel wire rope in a 7x7 diameter is best suited for rigging, lifting, towing, and heavy construction applications.

Need help with your selection? Take a look at our comprehensive guide to buying wire rope

Diameter (mm)	Weight (lb/100ft)	Min Breaking Load
		Min Breaking Load
		Galvanized (lbs)	Stainless steel (lbs)
1/32"	0.15	_	130
3/64"	0.42	270	270
1/16"	0.75	480	480
5/64"	1.1	_	650
3/32"	1.6	920	920
1/8"	2.8	1700	1700
5/32"	4.3	2600	2400
3/16"	6.2	3700	3700
7/32"	8.3	_	4800
1/4"	10.6	6100	6100
5/16"	16.7	9200	9000
3/8"	23.6	13300	12000
1/2"	44	_	23300
5/8"	68	_	32500
3/4"	97	_	46000

Min Order Quantity: 1000 Meters

Package: Wooden wheel or customized

Aircraft Cable 7x7 wire rope 304 Stainless Steel Wire Rope
