Used extensively throughout the marine industry as well as for general engineering applications, 7×7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
·Control cables
·Guardrail
·Standing rigging
·Running rigging
·Steering cable
·Marine/Saltwater environment
·Sewage treatment works
·Davit ropes
·Wire rope slings
Technical Specifications
Part No. | Diameter | Min Breaking Load | Weight |
RS-SS-077010 | 1.00 | 57 | 0.38 |
RS-SS-077015 | 1.50 | 128 | 0.86 |
RS-SS-077020 | 2.00 | 228 | 1.54 |
RS-SS-077025 | 2.50 | 356 | 2.40 |
RS-SS-077030 | 3.00 | 513 | 3.46 |
RS-SS-077040 | 4.00 | 912 | 6.14 |
RS-SS-077050 | 5.00 | 1430 | 9.60 |
RS-SS-077060 | 6.00 | 2050 | 13.80 |
RS-SS-077080 | 8.00 | 3650 | 24.60 |
RS-SS-077100 | 10.00 | 5700 | 38.40 |
RS-SS-077120 | 12.00 | 8270 | 55.30 |
Min Order Quantity: 1000 Meters

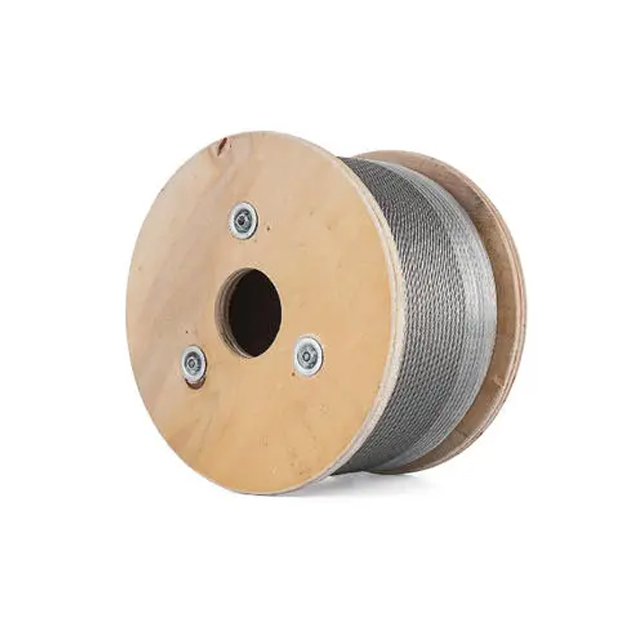

Package: Wooden wheel or customized
