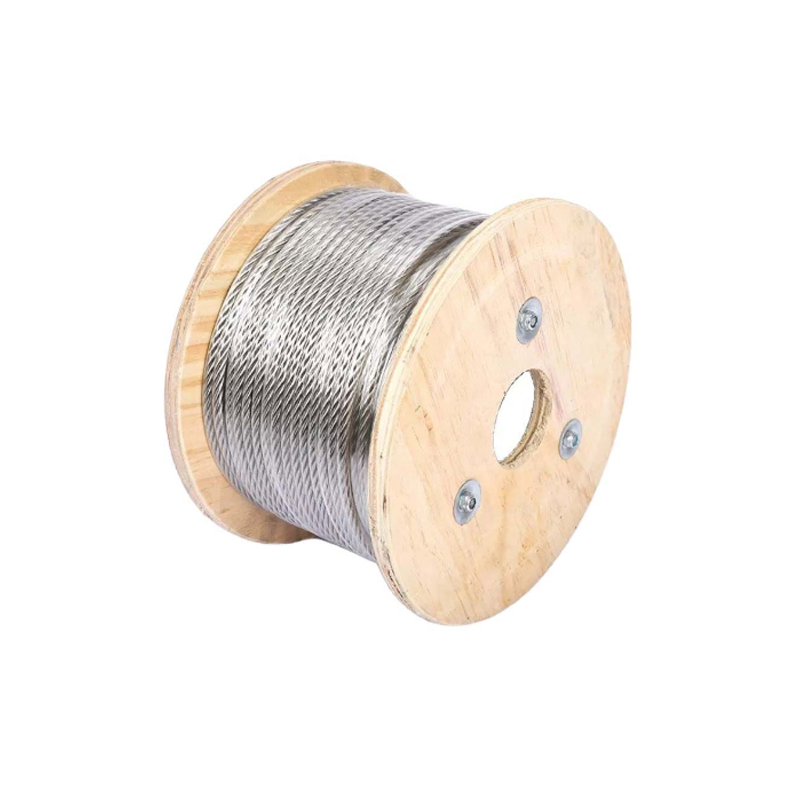

Stainless Steel Wire Rope


Availability:

Quantity:



Inquire Add to Basket

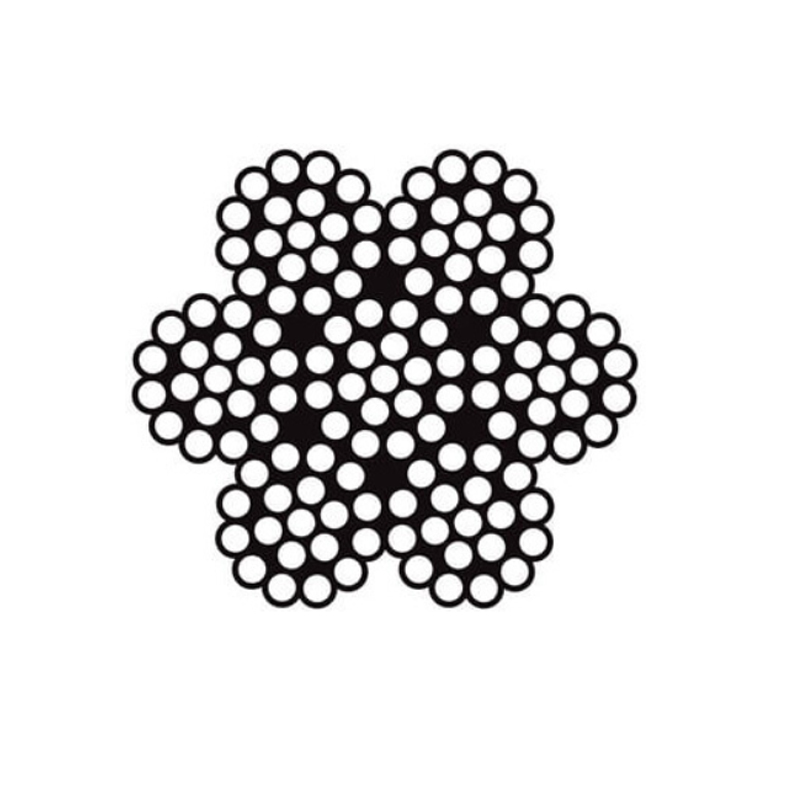

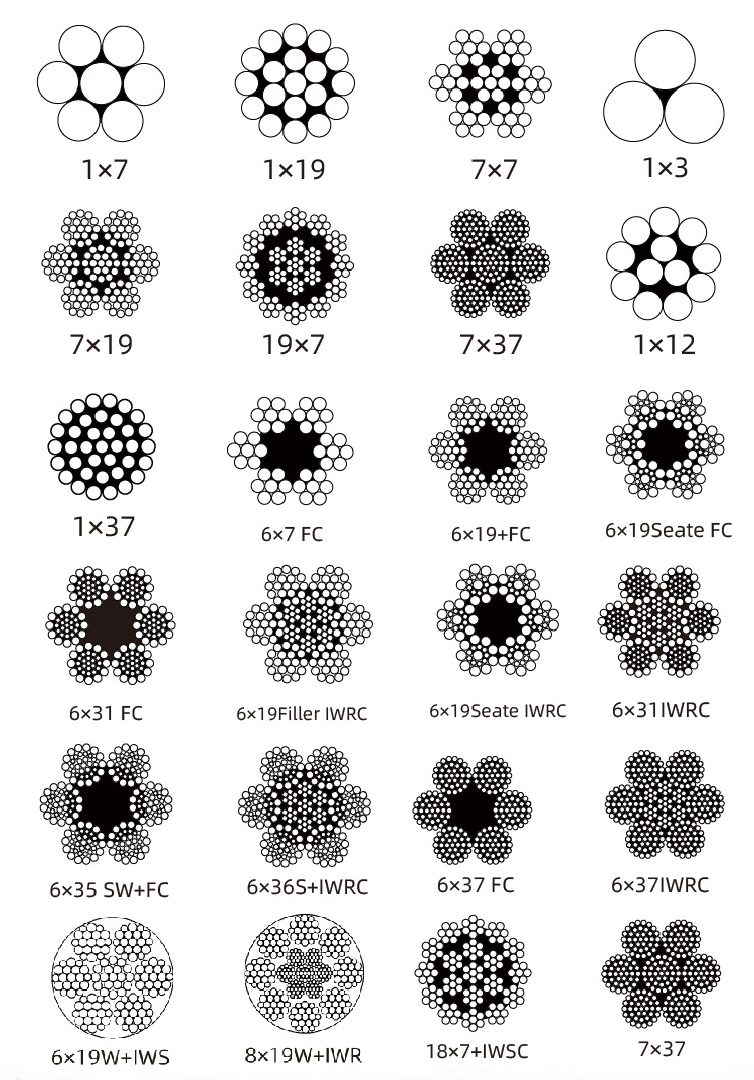

The stainless steel wire rope refers to a steel wire rope made of stainless steel material, which is a structure in which at least two layers of steel wire or a plurality of strands are spirally wound around a center or a core. Stainless steel wire rope has many characteristics such as high temperature resistance, good fatigue resistance, excellent breaking force, long service life and durability. It is widely used in coal, petroleum, metallurgy, chemical industry, shipbuilding, bridge, electric power, rubber, military, tourism and water conservancy, light industry and other industries.

Product Description

High dimensional accuracy, up to ±0.01mm;
Excellent surface quality and good brightness;
It has strong corrosion resistance, high tensile strength and fatigue resistance;
The chemical composition is stable, the steel is pure, and the inclusion content is low.

Technical Specifications

Part No.	Diameter (mm)	Min Breaking Load (kg)	Weight (Kg/100m)
Part No.	Diameter (mm)	Min Breaking Load (kg)	Weight (Kg/100m)
RS-SS0719020	2.00	212	1.49
RS-SS0719025	2.50	332	2.33
RS-SS0719030	3.00	478	3.35
RS-SS0719040	4.00	850	5.95
RS-SS0719050	5.00	1330	9.30
RS-SS0719060	6.00	1920	13.40
RS-SS0719080	8.00	3410	23.80
RS-SS0719100	10.00	5310	37.20
RS-SS0719120	12.00	7660	53.60
RS-SS0719140	14.00	10100	72.90
RS-SS0719160	16.00	13600	95.50

Min Order Quantity: 1000 Meters

Package: Wooden wheel or customized
