Stainless Steel Wire Rope


Availability:

Quantity:



Inquire Add to Basket

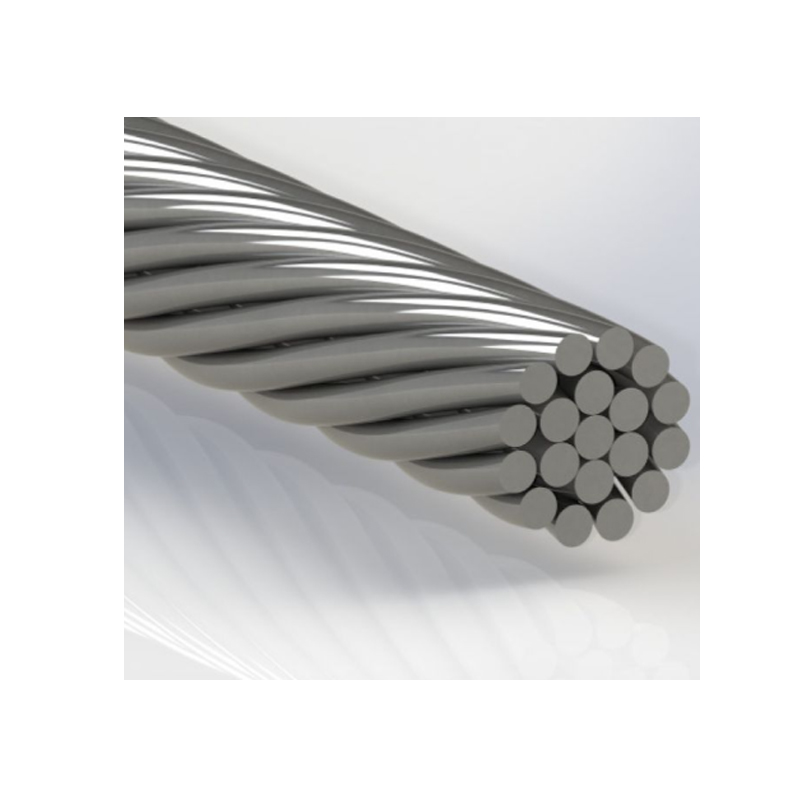

1X19 SUS316 stainless steel strand is a very poplar stainless steel construction. Used heavily throughout the marine industry, from diameter 1mm to 16mm.

Product Description

1X19’s excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make it a favourite for marine, structural and balustrade applications as well as many others, examples of which are shown below:

Balustrades

Standing rigging

Mast stays

Guardrail

Structural

Stay wires

Marine/Saltwater environment

Sewage treatment works

Technical Specifications

Part No.	Diameter (mm)	Min Breaking Load (kg)	Weight (Kg/100m)
Part No.	Diameter (mm)	Min Breaking Load (kg)	Weight (Kg/100m)
RS-SS-0119010	1.00	99	0.49
RS-SS-0119015	1.50	190	1.11
RS-SS-0119020	2.00	337	1.98
RS-SS-0119025	2.50	525	3.10
RS-SS-0119030	3.00	757	4.46
RS-SS-0119040	4.00	1350	7.93
RS-SS-0119050	5.00	2100	12.40
RS-SS-0119060	6.00	3030	17.80
RS-SS-0119080	8.00	5040	31.70
RS-SS-0119100	10.00	7870	49.50
RS-SS-0119120	12.00	10600	71.30
RS-SS-0119140	14.00	13400	97.10
RS-SS-0119160	16.00	17940	127.00

Min Order Quantity: 1000 Meters

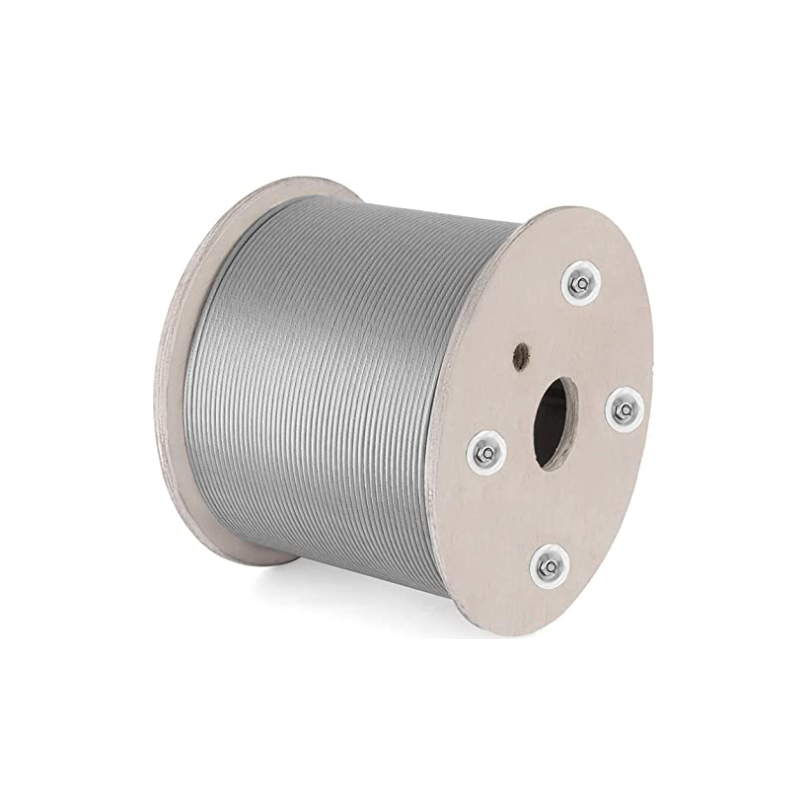

Package: Wooden wheel or customized
